Nissan Rogue Service Manual: Disassembly and assembly
FUEL LEVEL SENSOR UNIT

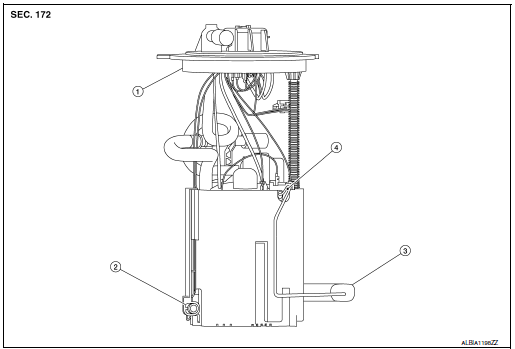

Exploded View
Fuel Level Sensor Unit
- Fuel filter and pump assembly
- Fuel level sensor unit
- Float arm assembly
- Fuel tank temperature sensor
Disassembly and Assembly
NOTE: Fuel level sensor unit and fuel tank temperature sensor are replaced as and assembly.
DISASSEMBLY

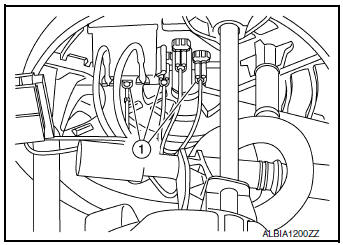

- Disconnect fuel level sensor unit/fuel tank temperature sensor harness connector (1).
NOTE: Hold connector with your fingers, because there is no tab for releasing stopper. Pull harness connector straight downward.

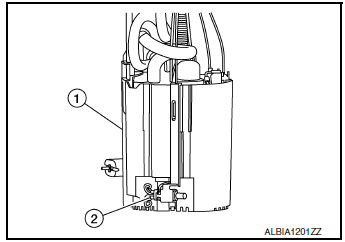

- Remove fuel tank temperature sensor (2) from fuel filter and fuel pump assembly (1).

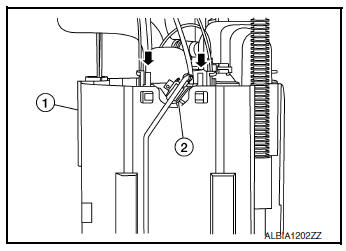

- Using a suitable tool press up on clip (
) and remove fuel level
sensor unit (2) from fuel filter and fuel pump assembly (1).
CAUTION:
- Be careful not to damage the fuel level sensor unit.
- Do not disassemble fuel filter and fuel pump assembly.
ASSEMBLY

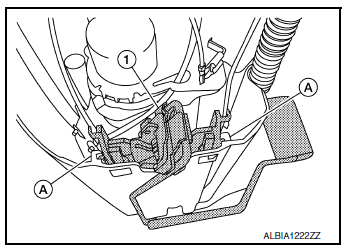

- Slide fuel level sensor unit (1) until it aligns to installation groove (A).
- After inserting, apply force in reverse direction (removal direction) to ensure it cannot be pulled out.

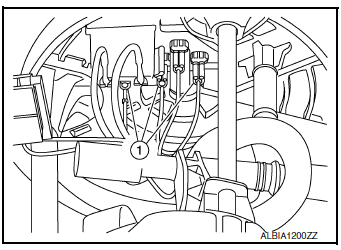

- Connect fuel level sensor unit/fuel tank temperature sensor harness connectors (1).
- Check fuel level sensor unit installation position to fuel filter and pump assembly for damage. Replace as necessary.
- Assembly of remaining components is in the reverse order of disassembly.
INSPECTION AFTER INSTALLATION
Use the following procedure to check for fuel leaks.
- Turn ignition switch “ON” (with engine stopped), then check connections for leaks by applying fuel pressure to fuel piping.
- Start engine and let it idle and check there are no fuel leaks at the fuel system connections.
SERVICE DATA AND SPECIFICATIONS (SDS)
Fuel Tank
Standard and Limit
| Fuel tank capacity | Approx. 55  ( 14-1/2
US gal, 12-1/8 Imp gal) |
| Fuel recommendation | Refer to MA-11 |
EVAP canister filter
Exploded View
EVAP canister vent control valve hose
Canister drain hose
Plug
EVAP canister filter
Front
Removal and Installation
REMOVAL
Disconnect EVAP canister ...
