Nissan Rogue Service Manual: Front door finisher

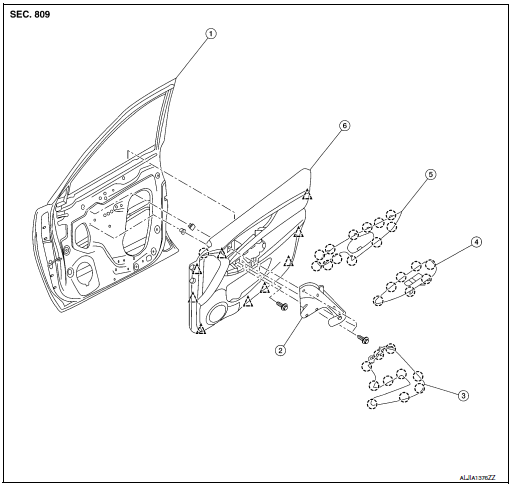

Exploded View
- Front door
- Front door pull handle bracket
- Front door pull handle
- Front power window switch (RH) finisher
- Front door inside handle finisher
- Front door finisher
Clip
Pawl
REMOVAL
NOTE: LH shown, RH similar.

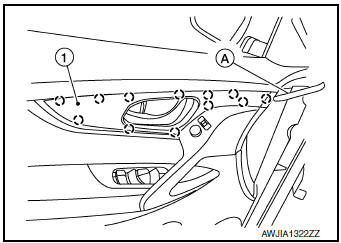

- Release pawls using a suitable tool (A) from front of inside handle finisher (1) while working toward the rear and remove.
: Pawl
- Release pawls using a suitable tool (A) from front of inside handle finisher (1) while working toward the rear and remove.
: Pawl
- Disconnect harness connector from door mirror remote control switch (LH only).

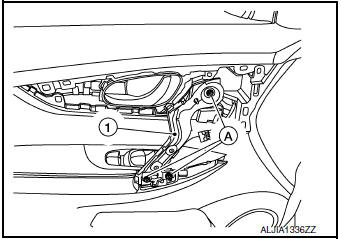

- Remove bolts (A) and front door inside pull handle bracket (1).

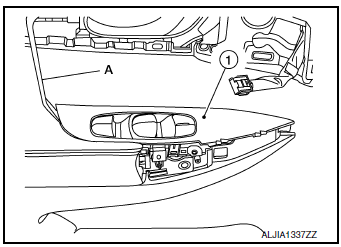

- Release pawls using a suitable tool (A) and remove front door power window and door lock/unlock switch finisher (1).
- Disconnect harness connectors from front door power window and door lock/unlock switch.

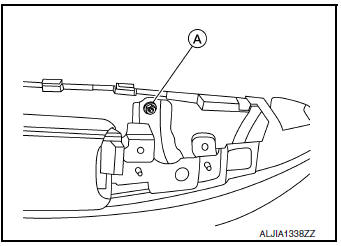

- Remove front door finisher bolt (A).

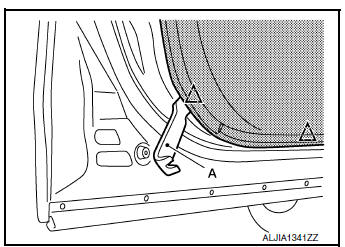

- Insert suitable tool (A) between front door finisher and door panel to release clips and pawl, starting from the bottom and working to the top.
: Clip
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- Visually check the clips and pawls for deformation and damage during installation. Replace with new ones if necessary.
- When installing front door finisher, check that clips and pawls are securely placed in door panel holes.
NOTE: When main power window and door lock/unlock switch or power window door lock/unlock switch RH is removed or replaced, it is necessary to perform the initialization procedure. Refer to PWC-25, "Work Flow".
Rear door finisher
Exploded View
Rear door
Rear power window switch finisher
Rear door screw cover
Rear door inside handle finisher
Rear door finisher
Tether clip
Tether ...
