Nissan Rogue Service Manual: Luggage room lamp

Removal and Installation

REMOVAL

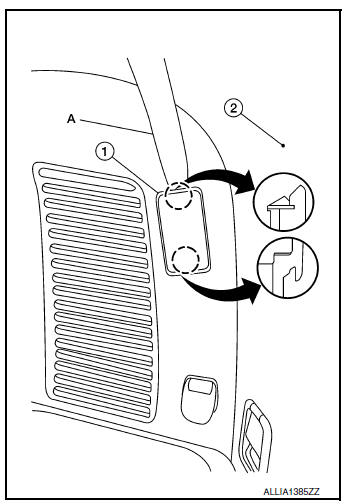

1. Insert a suitable tool (A) into the gap between the luggage lower finisher (RH) (2) and the top of luggage room lamp (1) to release the pawl.

   : Pawl

2. Disconnect the harness connector from the luggage room lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

WARNING: Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

•  Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from bulb surface.
•  Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may affect the performance of lamp.

1. Remove luggage room lamp. Refer to INL-61, "Removal and Installation".

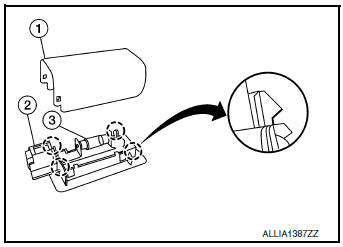

2.  Release pawls using a suitable tool and remove luggage room lamp cover (1).

   : Pawl

3.  Push the tab to release one bulb end, then grasp the luggage room lamp bulb (3) and pull out the second end to remove.
4.  Install luggage room lamp bulb (3) to luggage room lamp (2).
5.  Install luggage room lamp cover (1).

6. Install luggage room lamp. Refer to Refer to INL-61, "Removal and Installation".
