Nissan Rogue Service Manual: Oil pan

Exploded View

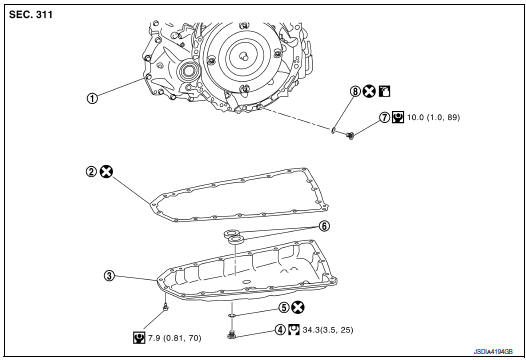

COMPONENT PARTS LOCATION

1. Transaxle assembly
2. Oil pan gasket
3. Oil pan
4. Drain plug
5. Drain plug gasket
6. Magnet
7. Overflow plug
8. O-ring

Always replace after every disassembly.
: N·m (kg-m, ft-lb)
: N·m (kg-m, in-lb)
: Apply CVT fluid

Removal and Installation

REMOVAL

1.  Remove engine under cover. Refer to TM-205, "Removal and Installation".
2.  Remove drain plug from oil pan and then drain the CVT fluid.
3.  Remove drain plug gasket.
4.  Remove the oil pan bolts, and then remove the oil pan and oil pan gasket.
5.  Remove the magnets from the oil pan.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

•  Do not reuse oil pan gasket.
•  Do not reuse drain plug gasket.
•  Do not reuse O-ring.
• Completely clean the iron powder from the magnet area of oil pan and the magnets.

Install the oil pan to the transaxle case with the following procedure.

1.  Install the oil pan gasket to the oil pan.

   CAUTION: Completely wipe out any moisture, oil, and old gasket from the oil pan gasket surface and bolt hole of oil pan and transaxle case.

2.  Install the oil pan assembly to the transaxle case, and then temporarily tighten the oil pan bolt.

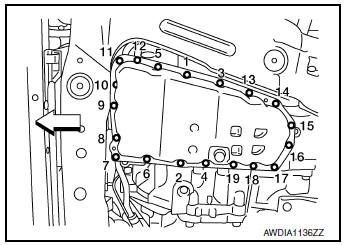

3.  Tighten the oil pan bolts in the order shown to the specified torque.

: Front

4. Tighten the oil pan bolts again clockwise from (1) shown to the specified torque.

Inspection

INSPECTION AFTER REMOVAL

Check oil pan for foreign material.

•  If a large amount of worn material is found, clutch plate may be worn.
•  If iron powder is found, bearings, gears, or clutch plates may be worn.
•  If aluminum powder is found, bushing may be worn, or chips or burrs of aluminum casting parts may enter.

Check points where wear is found in all cases.

INSPECTION AFTER INSTALLATION

Check the CVT fluid level and leakage. Refer to TM-190, "Inspection".
