Nissan Rogue Owners Manual: Parking brake
WARNING
- Be sure the parking brake is fully released
before driving. Failure to do so
can cause brake failure and lead to an
accident.
- Do not release the parking brake from
outside the vehicle.
- Do not use the shift lever in place of the
parking brake. When parking, be sure
the parking brake is fully engaged.
- Do not leave children unattended in a
vehicle. They could release the parking
brake and cause an accident.
|

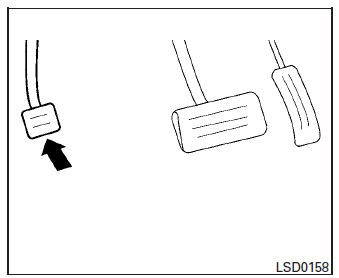

Parking brake
To engage: Firmly depress the parking brake.
To release:
- Firmly apply the foot brake.
- Move the shift lever to the P (Park) position.
- Firmly depress the parking brake pedal and it
will release.
- Before driving, be sure the brake warning
light goes out.
CONTINUOUSLY VARIABLE
TRANSMISSION (CVT)
The Continuously Variable Transmission (CVT) in
your vehicle is electronically controlled to produce
maximum power and smooth operation.
The recommended ...
ECO mode switch
The ECO mode helps to enhance the fuel
economy by controlling the throttle sensitivity and
transmission points.
To turn on the ECO mode, push the ECO mode
switch. The ECO mo ...
