Nissan Rogue Service Manual: Power window motor

Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Power Window Control System / DTC/circuit diagnosis / Power window motor

DRIVER SIDE

DRIVER SIDE : Description

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch.

DRIVER SIDE : Component Function Check

1. CHECK FRONT POWER WINDOW MOTOR LH OPERATION

Check front power window motor LH operation with main power window and door lock/unlock switch.

Is the inspection result normal? YES >> Front power window motor LH is OK.

NO >> Refer to PWC-38, "DRIVER SIDE : Diagnosis Procedure".

DRIVER SIDE : Diagnosis Procedure

1.CHECK POWER WINDOW MOTOR LH INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2.  Disconnect front power window motor LH connector.
  3.  Turn ignition switch ON.

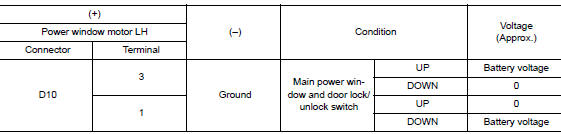

  4.  Check voltage between power window motor LH harness connector and ground.

Check power window motor lh input signal

Is the inspection result normal? YES >> GO TO 3.

NO >> GO TO 2.

2.CHECK POWER WINDOW MOTOR CIRCUIT

  1.  Turn ignition switch OFF.
  2.  Disconnect main power window and door lock/unlock switch connector.
  3.  Check continuity between main power window and door lock/unlock switch harness connector and front power window motor LH harness connector.

Check power window motor circuit

  1. Check continuity between main power window and door lock/unlock switch harness connector and ground.

Check power window motor circuit

Is the inspection result normal?

YES >> Replace main power window and door lock/unlock switch.Refer to PWC-64, "Removal and Installation".

NO >> Repair or replace harness.

3.CHECK FRONT POWER WINDOW MOTOR LH

Check front power window motor LH.

Refer to PWC-39, "DRIVER SIDE : Component Inspection".

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace front power window motor LH. Refer to GW-16, "Removal and Installation".

4.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

DRIVER SIDE : Component Inspection

1.CHECK FRONT POWER WINDOW MOTOR LH

  1.  Turn ignition switch OFF.
  2.  Disconnect front power window motor LH connector.
  3.  Check motor operate by connecting the battery voltage directly to front power window motor LH connector.

Check front power window motor lh

Is the inspection result normal? YES >> Inspection End.

NO >> Replace front power window motor LH. Refer to GW-16, "Removal and Installation".

PASSENGER SIDE

PASSENGER SIDE : Description

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or front power window switch (passenger side).

PASSENGER SIDE : Component Function Check

1. CHECK FRONT POWER WINDOW MOTOR RH OPERATION

Check front power window motor RH operation with main power window and door lock/unlock switch or front power window switch RH.

Is the inspection result normal? YES >> Front power window motor RH is OK.

NO >> Refer to PWC-39, "PASSENGER SIDE : Diagnosis Procedure".

PASSENGER SIDE : Diagnosis Procedure

1.CHECK FRONT POWER WINDOW MOTOR RH INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2.  Disconnect front power window motor RH connector.
  3.  Turn ignition switch ON.

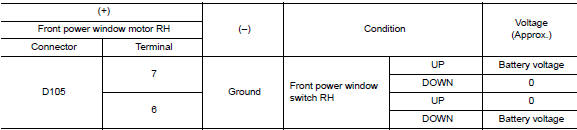

  4.  Check voltage between front power window motor RH harness connector and groun

Is the inspection result normal? YES >> GO TO 3.

NO >> GO TO 2.

2.CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT

  1.  Turn ignition switch OFF.
  2.  Disconnect front power window switch RH connector.
  3. Check continuity between front power window switch RH harness connector and front power window motor RH harness connector.

  1. Check continuity between front power window switch RH harness connector and ground.

Is the inspection result normal? YES >> Replace front power window switch RH. Refer to PWC-65, "Removal and Installation".

NO >> Repair or replace harness.

3.CHECK FRONT POWER WINDOW MOTOR RH

Check front power window motor RH.

Refer to PWC-40, "PASSENGER SIDE : Component Inspection".

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace front power window motor RH. Refer to GW-16, "Removal and Installation".

4.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

PASSENGER SIDE : Component Inspection

1.CHECK FRONT POWER WINDOW MOTOR RH

  1.  Turn ignition switch OFF.
  2.  Disconnect front power window motor RH connector.
  3. Check motor operate by connecting the battery voltage directly to front power window motor RH connector.

Check front power window motor rh

Is the inspection result normal? YES >> Inspection End.

NO >> Replace front power window motor RH. Refer to GW-16, "Removal and Installation".

REAR LH

REAR LH : Description

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or rear power window switch LH.

REAR LH : Component Function Check

1.CHECK REAR POWER WINDOW MOTOR LH OPERATION

Check rear power window motor LH operation with main power window and door lock/unlock switch or rear power window switch LH.

Is the inspection result normal? YES >> Rear power window motor LH is OK.

NO >> Refer to PWC-41, "REAR LH : Diagnosis Procedure"

REAR LH : Diagnosis Procedure

1.CHECK REAR POWER WINDOW MOTOR LH INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2.  Disconnect rear power window motor LH connector.
  3.  Turn ignition switch ON.

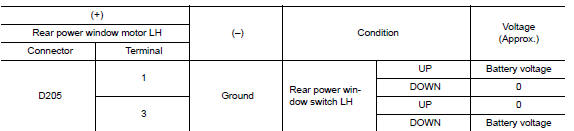

  4.  Check voltage between rear power window motor LH harness connector and ground

Check rear power window motor lh input signal

Is the inspection result normal? YES >> GO TO 3.

NO >> GO TO 2.

2.CHECK REAR POWER WINDOW MOTOR LH CIRCUIT

  1.  Turn ignition switch OFF.
  2.  Disconnect rear power window switch LH connector.
  3. Check continuity between rear power window switch LH harness connector and rear power window motor LH harness connector.

Check rear power window motor lh circuit

  1. Check continuity between rear power window switch LH connector and ground.

Check rear power window motor lh circuit

Is the inspection result normal? YES >> Replace rear power window switch LH.Refer to PWC-65, "Removal and Installation".

NO >> Repair or replace harness.

3.CHECK REAR POWER WINDOW MOTOR LH

Check rear power window motor LH.

Refer to PWC-42, "REAR LH : Component Inspection".

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace rear power window motor LH. Refer to GW-22, "Removal and Installation".

4.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

REAR LH : Component Inspection

COMPONENT INSPECTION

1.CHECK REAR POWER WINDOW MOTOR LH

  1.  Turn ignition switch OFF.
  2.  Disconnect rear power window motor LH connector.
  3.  Check motor operation by connecting the battery voltage directly to rear power window motor LH connector.

Check rear power window motor lh

Is the inspection result normal? YES >> Inspection End.

NO >> Replace rear power window motor LH. Refer to GW-22, "Removal and Installation".

REAR RH

REAR RH : Description

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or rear power window switch RH.

REAR RH : Component Function Check

1. CHECK REAR POWER WINDOW MOTOR RH OPERATION

Check rear power window motor RH operation with main power window and door lock/unlock switch or rear power window switch RH.

Is the inspection result normal? YES >> Rear power window motor RH is OK.

NO >> Refer to PWC-43, "REAR RH : Diagnosis Procedure".

REAR RH : Diagnosis Procedure

1.CHECK REAR POWER WINDOW MOTOR RH INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2.  Disconnect rear power window motor RH connector.
  3.  Turn ignition switch ON.

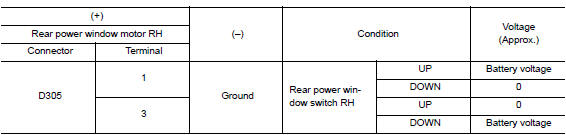

  4.  Check voltage between rear power window motor RH harness connector and ground.

Check rear power window motor rh input signal

Is the inspection result normal? YES >> GO TO 3.

NO >> GO TO 2.

2.CHECK REAR POWER WINDOW MOTOR RH CIRCUIT

  1.  Turn ignition switch OFF.
  2.  Disconnect rear power window switch RH connector.
  3.  Check continuity between rear power window switch RH harness connector and rear power window motor RH harness connector.

Check rear power window motor rh circuit

  1. Check continuity between rear power window switch RH harness connector and ground.

Check rear power window motor rh circuit

Is the inspection result normal? YES >> Replace rear power window switch RH.Refer to PWC-66, "Removal and Installation".

NO >> Repair or replace harness.

3.CHECK REAR POWER WINDOW MOTOR RH

Check rear power window motor RH.

Refer to PWC-44, "REAR RH : Component Inspection".

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace rear power window motor RH. Refer to GW-22, "Removal and Installation".

4.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

REAR RH : Component Inspection

COMPONENT INSPECTION

1.CHECK REAR POWER WINDOW MOTOR RH

  1.  Turn ignition switch OFF.
  2.  Disconnect rear power window motor RH connector.
  3.  Check motor operation by connecting the battery voltage directly to rear power window motor RH connector.

Check rear power window motor rh

Is the inspection result normal? YES >> Inspection End.

NO >> Replace rear power window motor RH. Refer to GW-22, "Removal and Installation".

Rear power window switch
Description Rear power window motor will be operated if rear power window switch is operated. Component Function Check 1. CHECK REAR POWER WINDOW SWITCH FUNCTION Check rear power window motor op ...

Encoder circuit
Description Detects condition of the front power window motor LH operation and transmits to main power window and door lock/unlock switch as pulse signal. Component Function Check 1.CHECK ENCODE ...
