Nissan Rogue Service Manual: Removal and installation

ACCELERATOR PEDAL ASSEMBLY

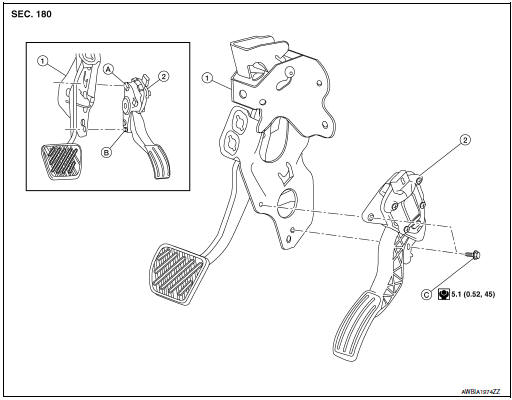

Exploded View

1. Brake pedal
2. Accelerator pedal assembly

1.  Locator hook
2.  Locator pin
3. Bolt

Removal and Installation

REMOVAL

1.  Disconnect the harness connector from the accelerator pedal assembly.
2.  Remove the bolts, then remove accelerator pedal assembly.

CAUTION:

•  Do not disassemble accelerator pedal assembly.
•  Do not drop or impact accelerator pedal assembly.
•  Do not expose accelerator pedal assembly to water.

INSTALLATION

Installation is in the reverse order of removal.

NOTE: When installing the accelerator pedal assembly, make sure to align locator hook and locator pin before installing bolts.

For inspection, refer to ACC-3, "Inspection".

Inspection

INSPECTION AFTER INSTALLATION

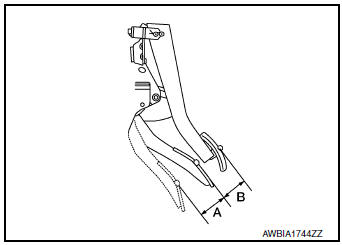

• Check that the accelerator pedal moves smoothly within the specified range.

Accelerator pedal stroke (A) : Refer to ACC-5, "Accelerator Control"

• Check the accelerator pedal height.

Accelerator pedal height (B) : Refer to ACC-5, "Accelerator Control"

• accelerator pedal does not meet specified values, check brake pedal height. Refer to ACC-3, "Inspection".
•  Depress and release the accelerator pedal to check that it returns quickly and smoothly to the original released position.

CAUTION:

•  Whenever the harness connector of the accelerator pedal position sensor has been disconnected, perform "Accelerator Pedal Released Position Learning". Refer to EC-139, "Work Procedure".
•  The accelerator pedal should operate smoothly without catching when the pedal operating force is released. The pedal should return smoothly to the fully raised position. The spring should be free from damage.
