Nissan Rogue Service Manual: Symptom diagnosis
CVT CONTROL SYSTEM
Symptom Table
- The diagnosis item number indicates the order of check. Start checking in the order from 1.
- Perform diagnoses of symptom table 1 before symptom table 2.

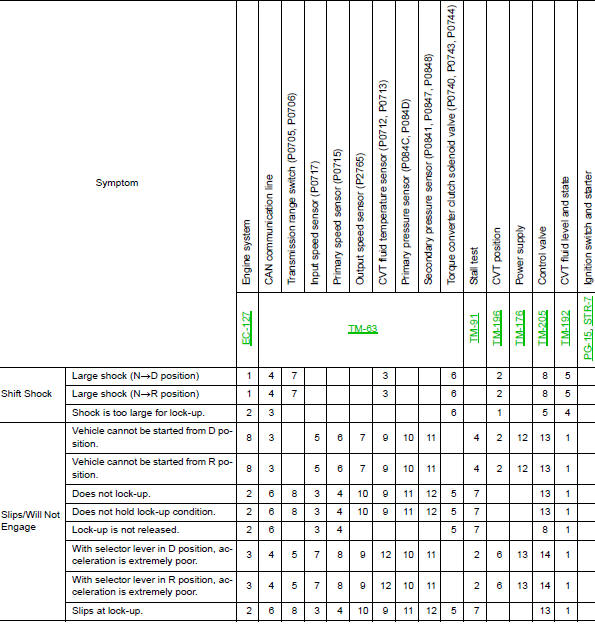

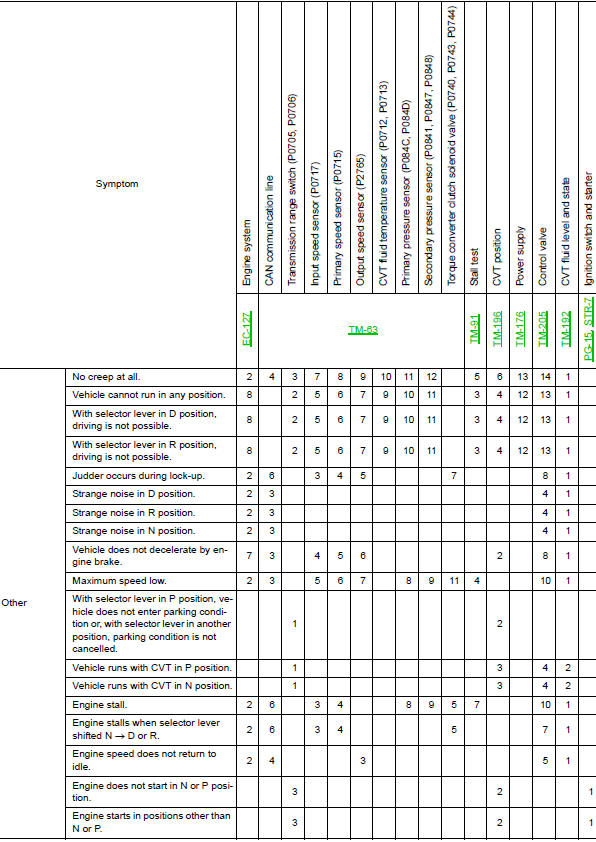

Symptom Table 1

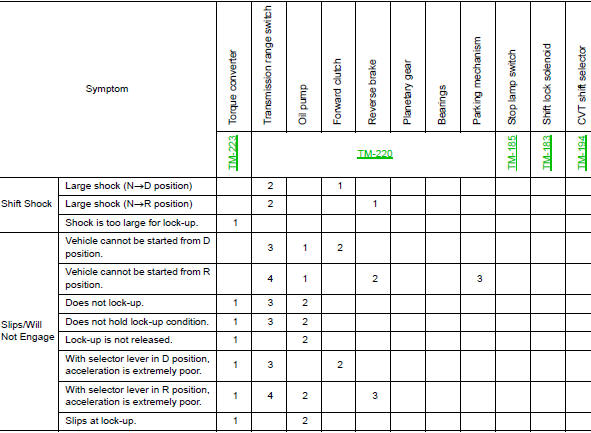

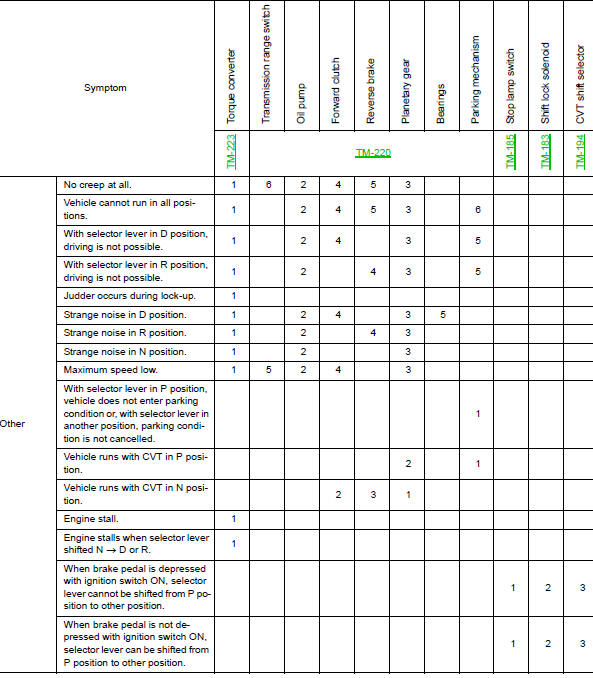

Symptom Table 2
