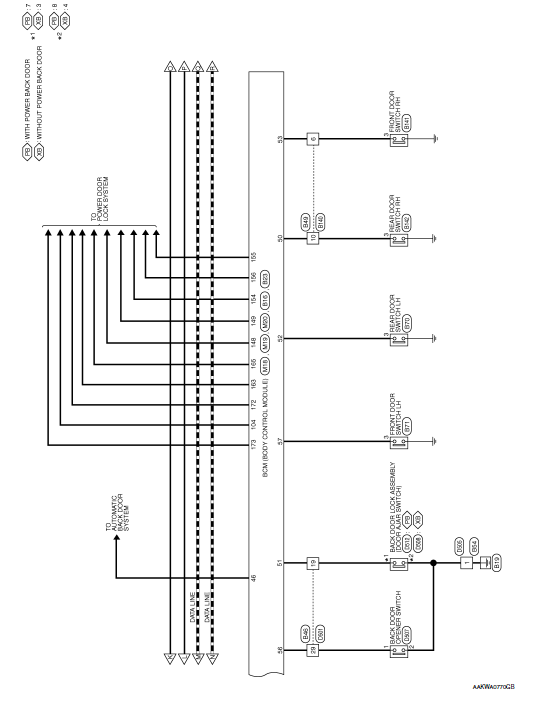

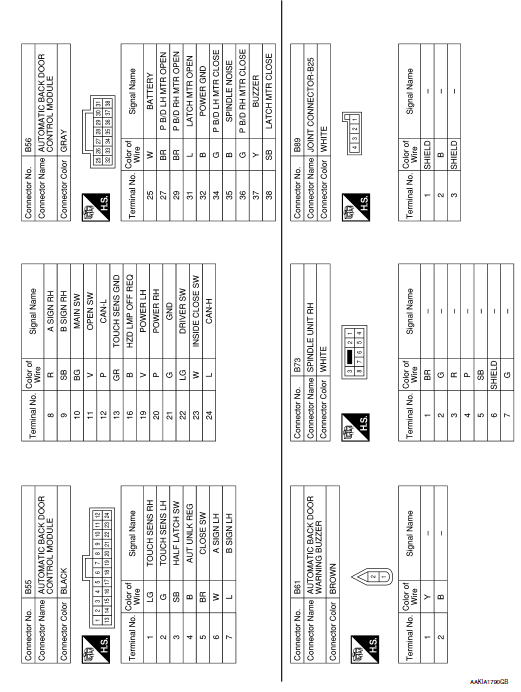

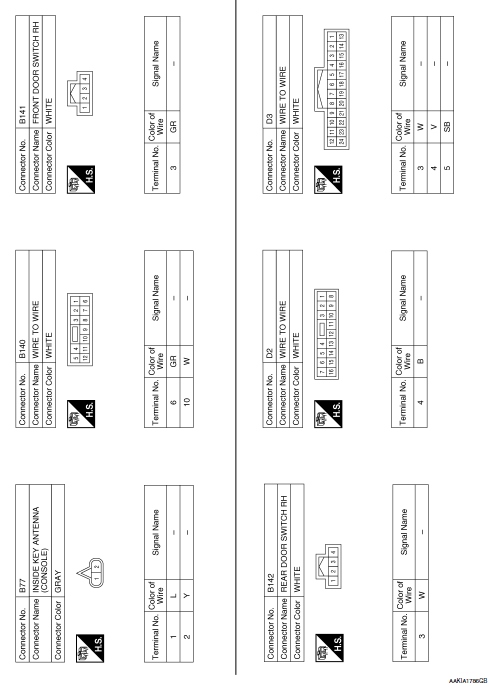

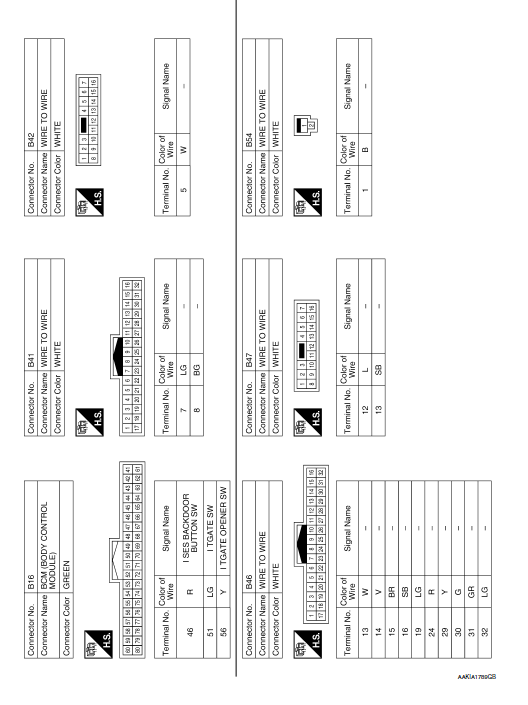

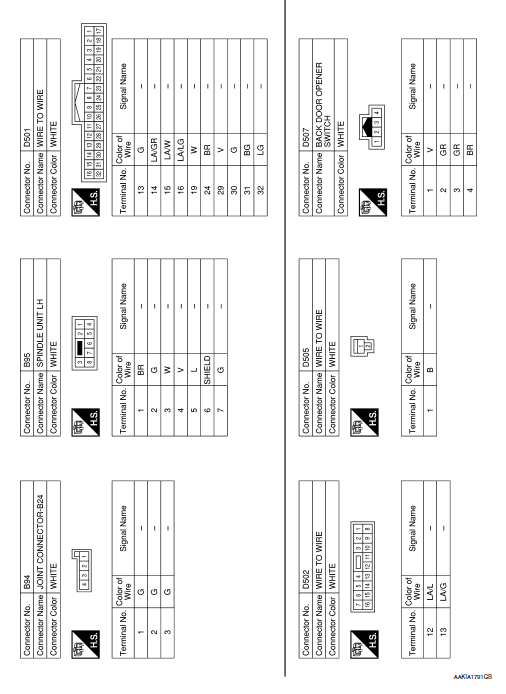

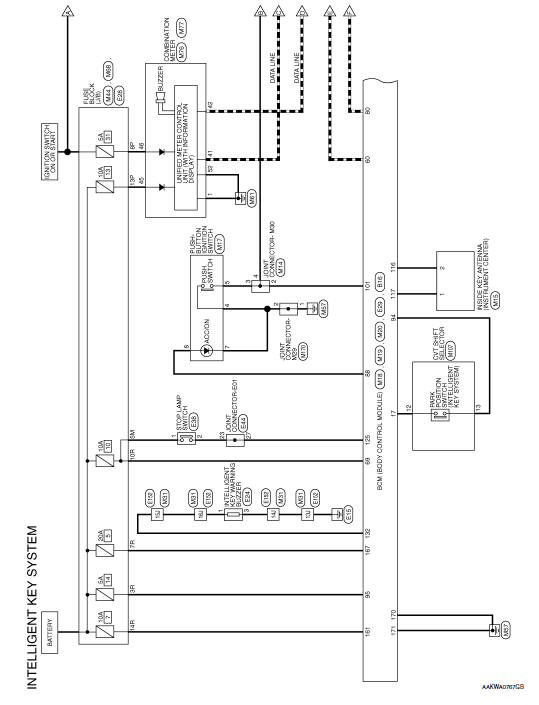

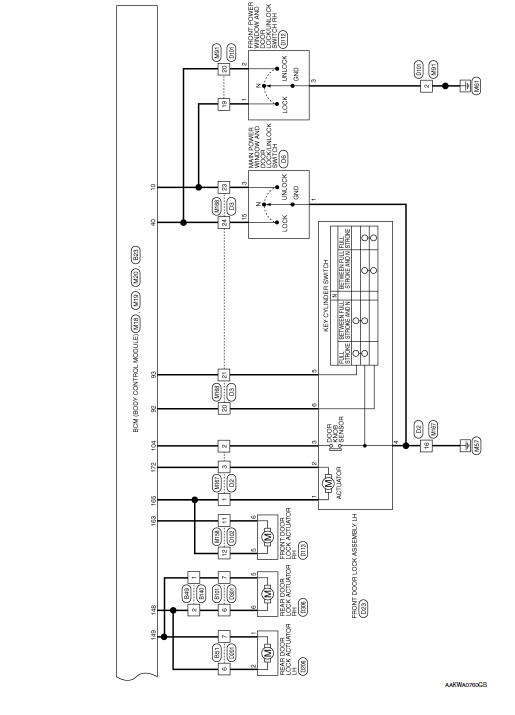

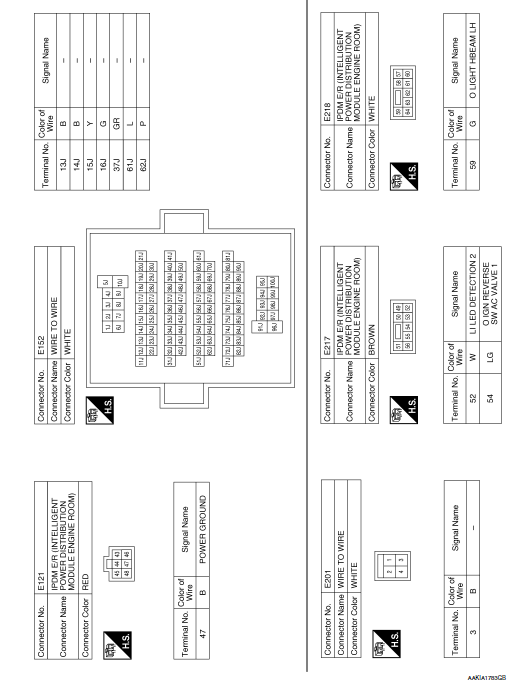

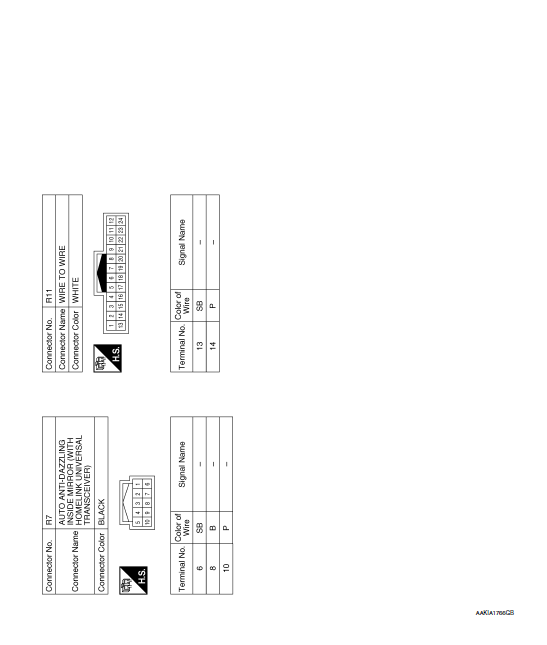

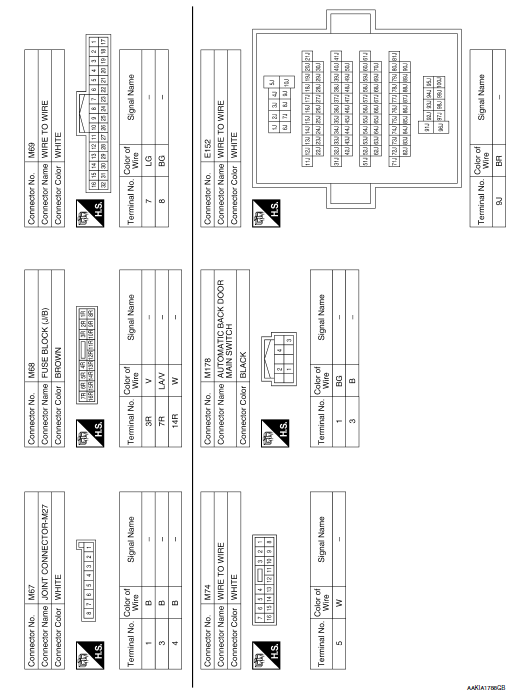

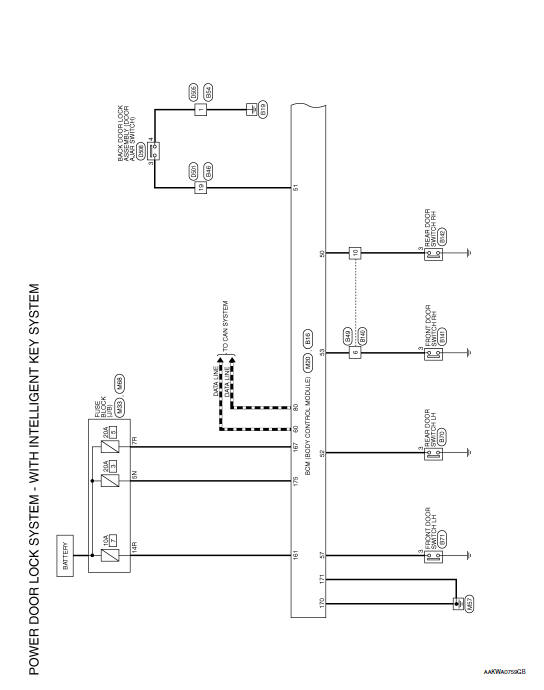

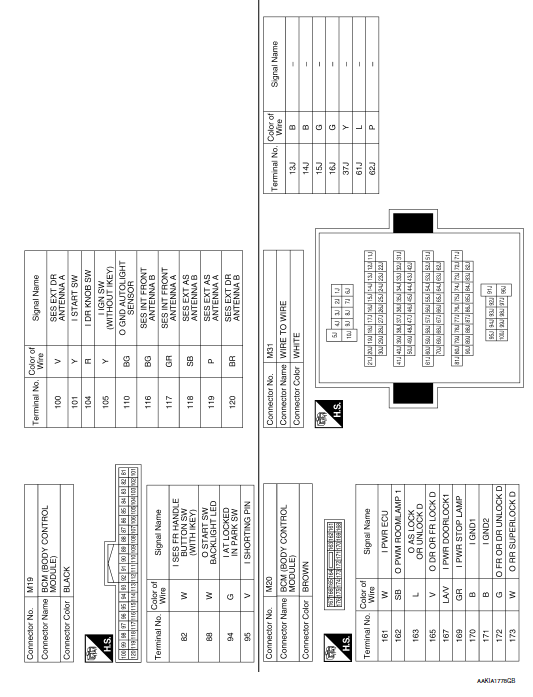

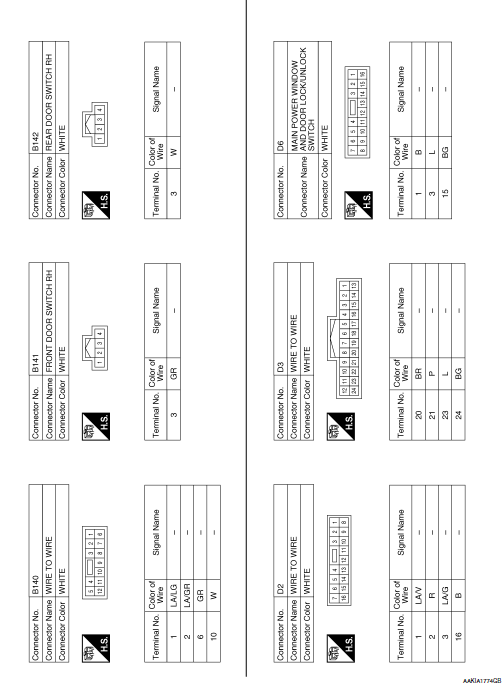

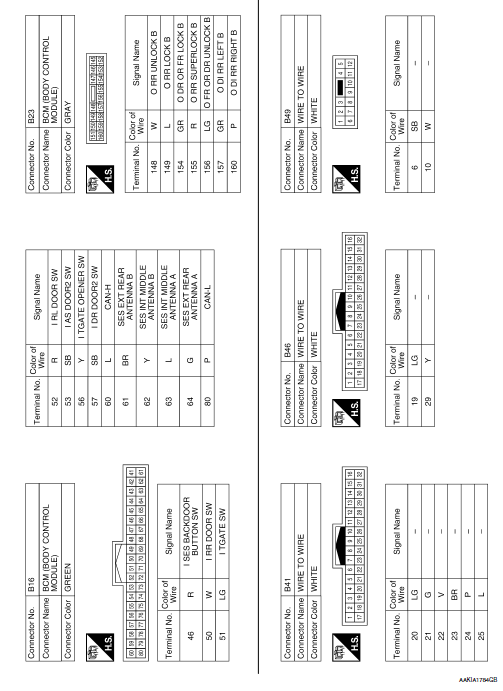

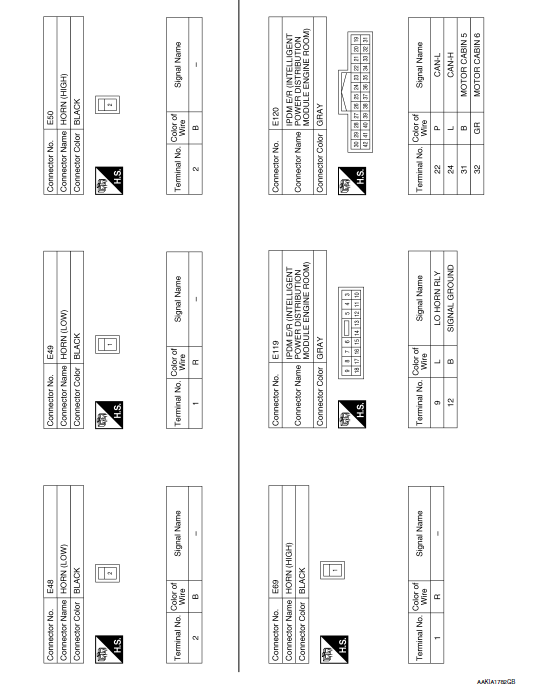

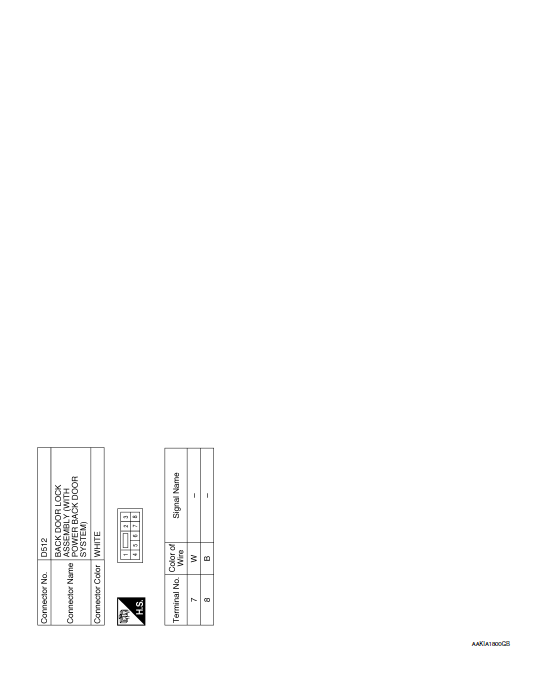

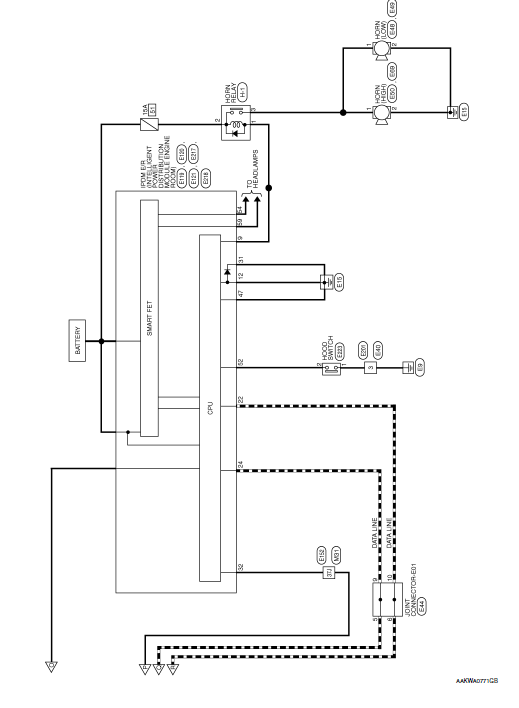

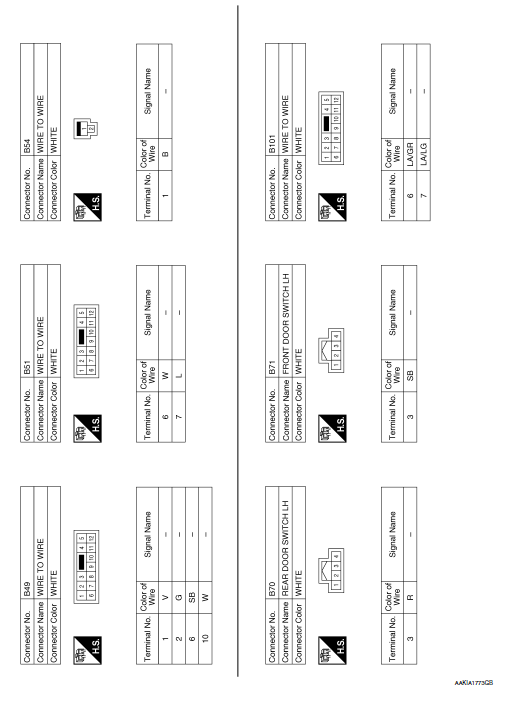

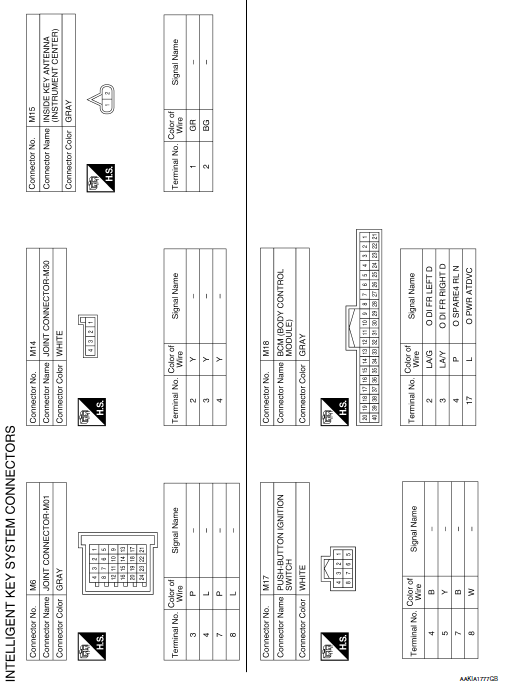

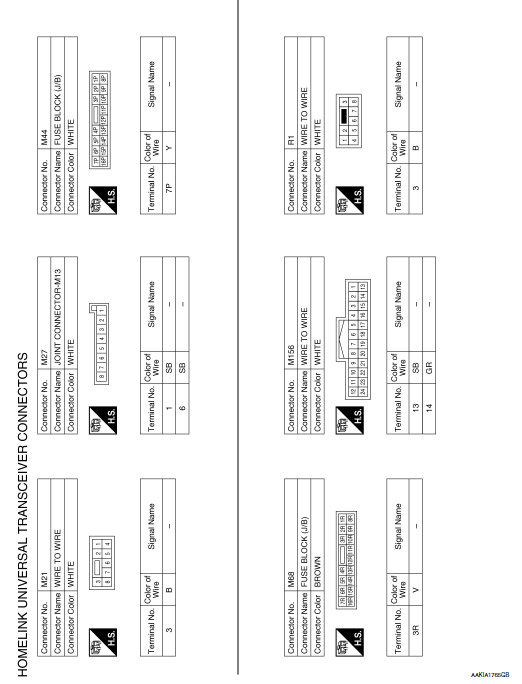

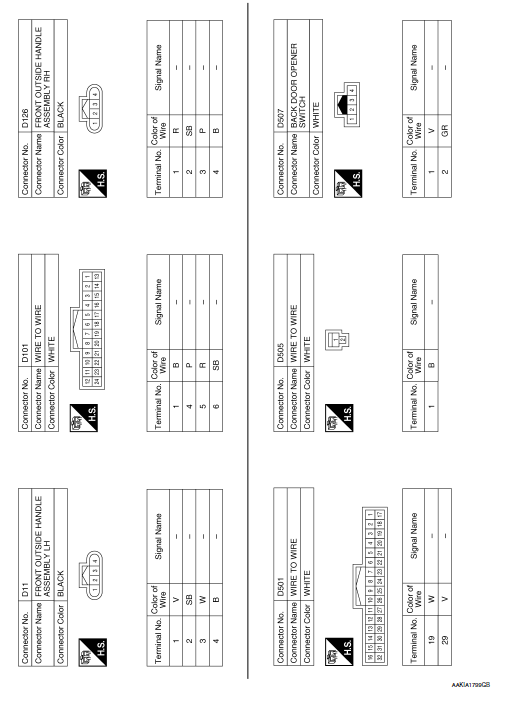

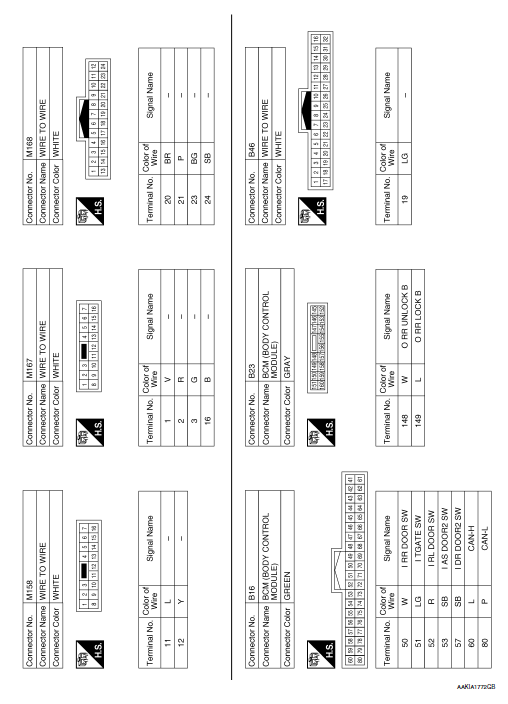

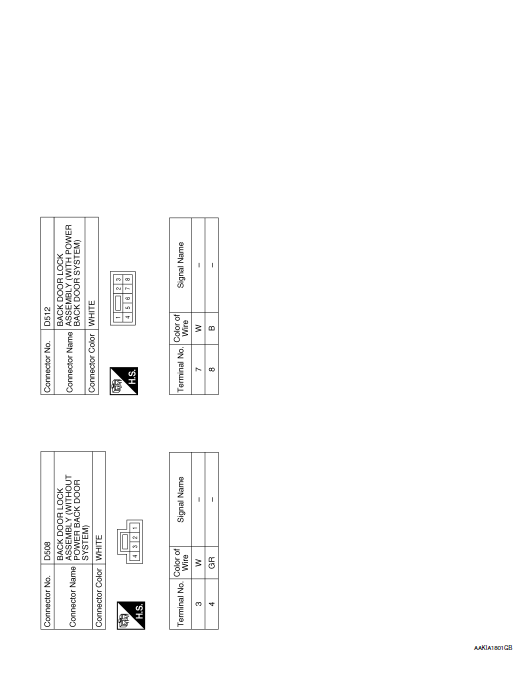

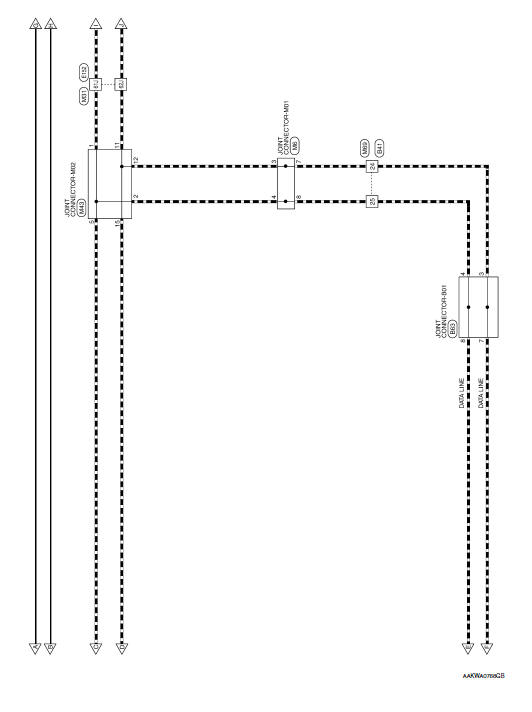

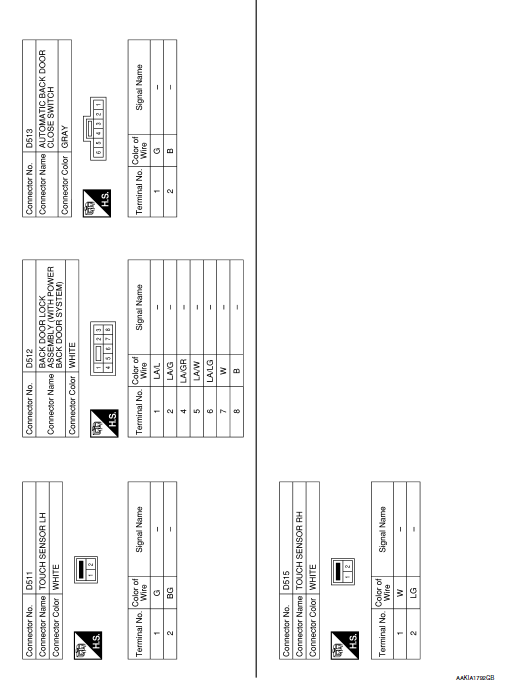

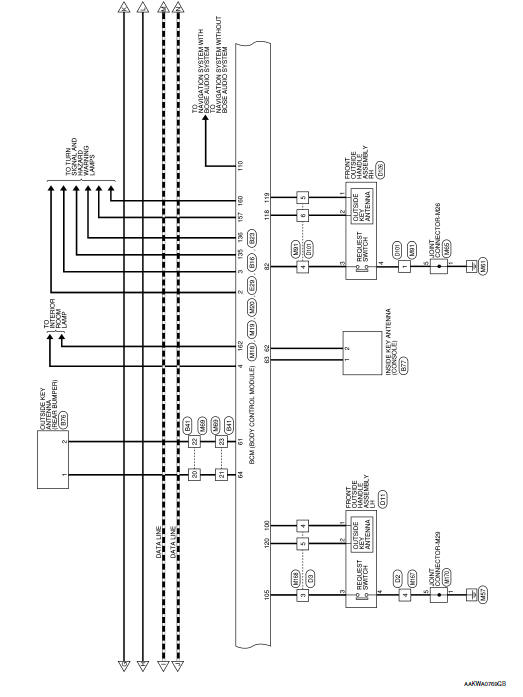

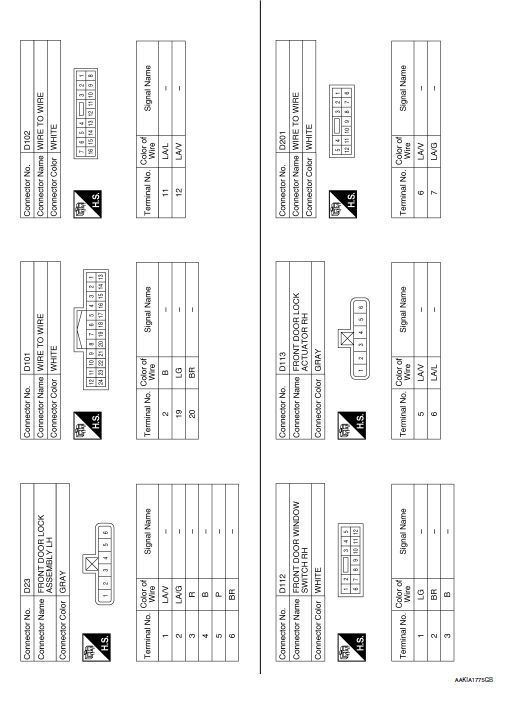

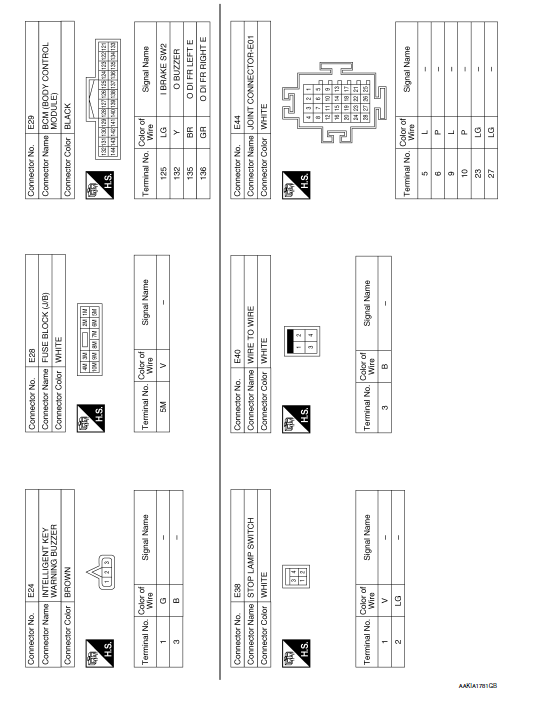

Nissan Rogue Service Manual: Wiring diagram

ECU diagnosis information

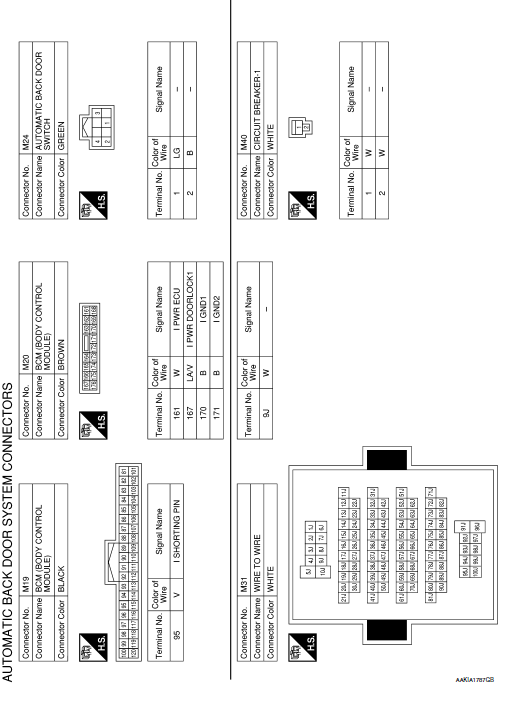

AUTOMATIC BACK DOOR CONTROL UNIT Reference Value VALUES ON THE DIAGNOSIS TOOL CONSULT MONITOR ITEM TERMINAL LAYOUT PHYSICAL VALUES Fail Safe DTC Inspection Prior ...
