Nissan Rogue Service Manual: Symptom diagnosi
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

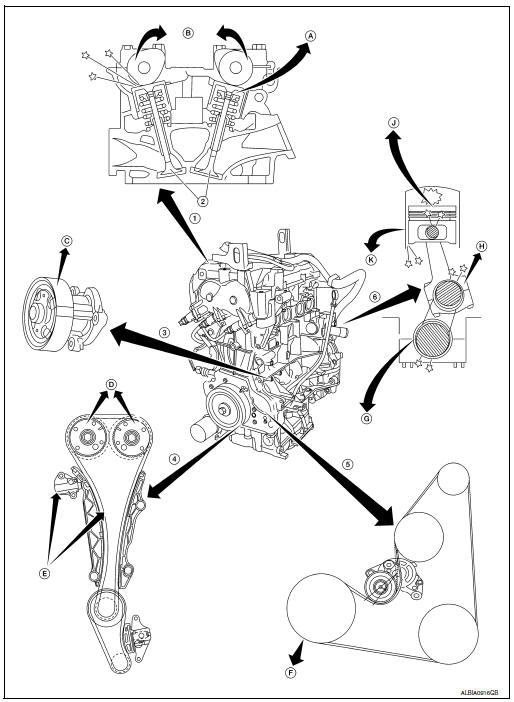

NVH troubleshooting - engine noise
- Valve mechanism
- Intake and exhaust valve
- Water pump
- Timing chain
- Drive belt
- Rotation mechanism
- Tappet noise
- Camshaft bearing noise
- Water pump noise
- VTC noise
- Timing chain and chain tensioner noise
- Drive belt noise (slipping)
- Main bearing noise
- Connecting rod bearing noise
- Piston pin noise
- Piston slap noise

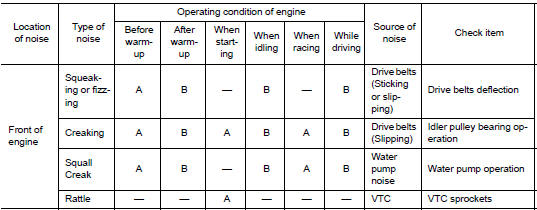

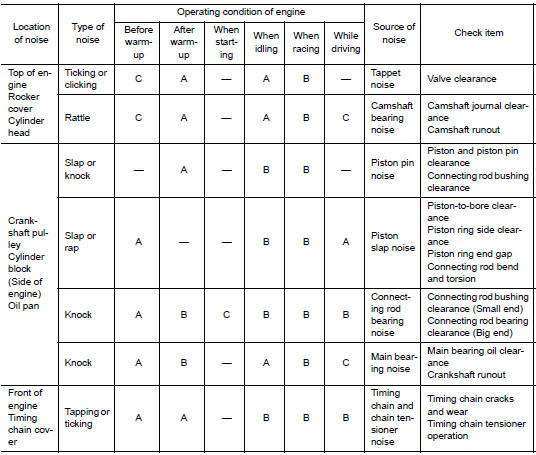

Use the chart below to help you find the cause of the symptom
- Locate the area where noise occurs.
- Confirm the type of noise.
- Specify the operating condition of engine.
- Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not related
